Symptoms of Outboard Mounted too High – What to do?

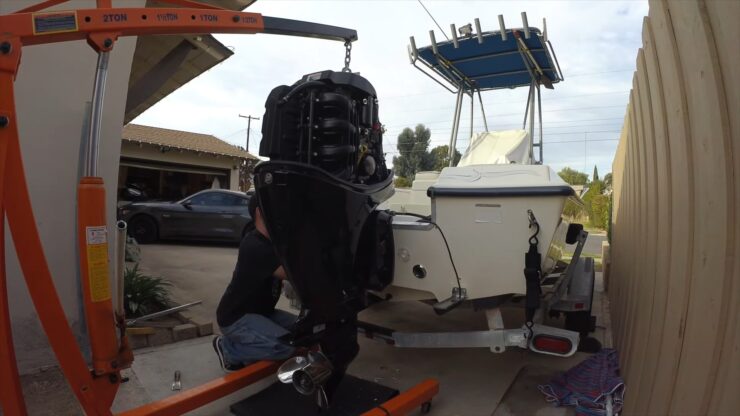

Outboard Mounted too High

When it comes to outboard motors, it may be hard to tell if they’re placed correctly. Most boat owners have encountered it at some time. But, finding reliable information on how to fix it is surprisingly tough. So, you are here to find out the symptoms of an outboard mounted too high.

An unleveled aircraft is the most apparent example. The prop blows out as you attempt to plane out proving that the overboard is too high. While turning and in severe waves, it loses its bite on the water and blows out. Furthermore, lower drag is a warning indicator that the motor is too high. Because it isn’t submerged enough.

These symptoms are only a small sample of what you might expect to see. It’s an issue because none of these symptoms are specific signs on their own. When it comes to finding the proper outboard height, we need additional information.

Troubleshooting Signs for Setting the Outboard Mounted Too High

Symptoms of Outboard Mounted too High

If the outboard motor is too high, you may notice a variety of issues.

Symptom 1: An Unleveled Aircraft

The boat’s propeller will blow out if the overboard is too high when you attempt to plane it out. Having less drag is also a symptom that the motor is too high since the motor isn’t submerged enough.

During a whale porpoise, the slanted posture of the whale breaks the water’s surface. Your speed will drop and you won’t be able to accelerate to your greatest potential if this occurs. A raised outboard engine may also result in a drop in water pressure in the surrounding area.

Symptom 2: Propeller Blows the Water too Much

The propeller thrashes the water without pushing too much. It might be an indicator that your outboard is too high.

Symptom 3: Miscalculated Trim Angle

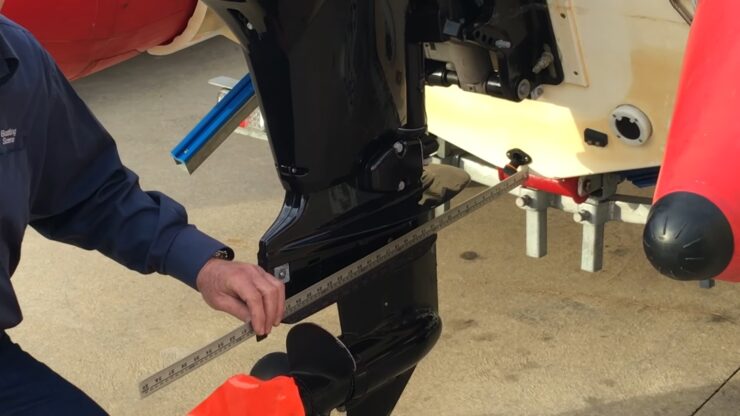

Miscalculated Trim Angle

It’s possible that the trim angle is causing the issue. The angle of the outboard motor may usually be altered and tilted. This is because it matches the boat’s position in the water. It is possible for unsafe handling to occur if the angle of the propeller shaft points down. It causes the stern to rise and the bow to fall.

If the push is applied at an upward angle, the stern will be lowered. The bow will be raised, and a new set of issues will arise.

It’s hard to give you an accurate response. Without knowing the outboard, the length of the leg, the depth and angle of the transom it’s tough. Even whether the boat has a planning or displacement hull we exactly can’t prove what’s the reason.

Fast planing boats need trim more than low-speed displacement boats. Because trim may make the difference between success and failure. When the boat is at rest and regularly loaded, we recommend keeping the outboard prop fully submerged.

Symptom 4: Cavitation

When the outboard motor is mounted too high, it can cause the water intake to draw in air instead of water. This can lead to cavitation, which causes the propeller to lose its grip on the water and spin freely.

This results in reduced performance, including slower acceleration and top speeds. In addition to affecting performance, cavitation can also cause damage to the propeller and other components of the outboard motor.

Symptom 5: Reduced fuel efficiency

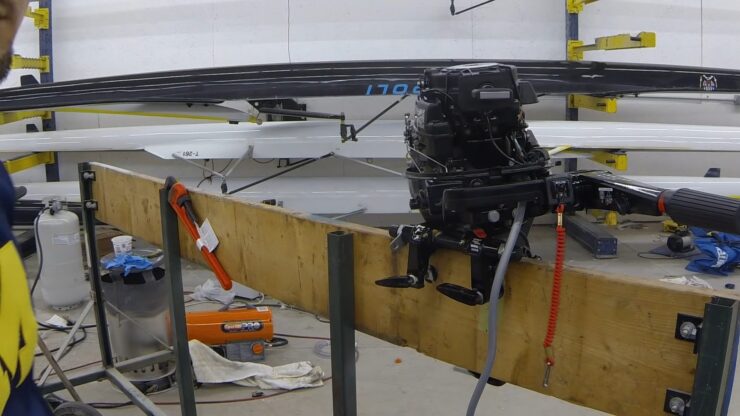

Reduced fuel efficiency

When the outboard motor is mounted too high, it may need to work harder to achieve the same level of performance. This can result in reduced fuel efficiency and higher fuel consumption, which can be costly over time.

In addition to affecting fuel efficiency, a motor mounted too high can also cause the boat to ride rougher, which can be uncomfortable for passengers and can cause damage to the boat over time.

Transom Height to Set Outboard Mount

As a prelude to our discussion, let’s review the function of a boat transom. The back of the boat has a flat vertical portion called the transom. Some boat owners choose to emblazon their vessel’s name on the mounting bracket for the outboard motor.

The transom’s height is determined by drawing a line through the middle of the boat. The measurement should start from the bottom to the top of the transom.

It is possible for serious problems to arise if the height of the boat’s transom is wrong. The engine and bracket might be damaged if the rear transom is too high. Because of this, the propellers will have a hard time reaching the surface of the water.

On most engines, the anti-ventilation plate is located near the bottom of the vessel. This is the most common position. This is determined by the propeller shaft being perpendicular to the vessel’s hull. The right measurement of the slip of the propeller shows its performance.

Mounting holes and brackets are included with the outboard. These may be adjusted by the boater since they are vertically aligned. If you’re just getting started, it’s smart to stick with what you know.

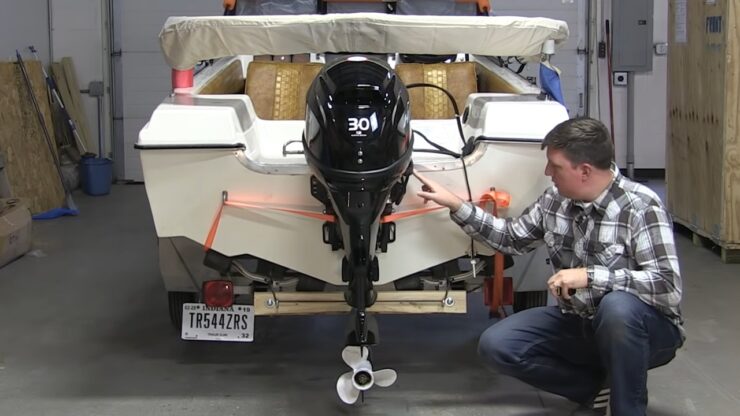

Optimal Outboard Mounting Heights

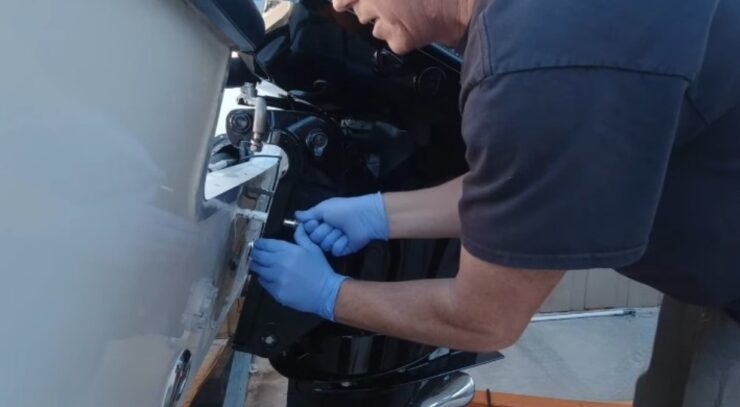

Mercury outboard motor height

This is the distance from the base of the outboard engine to the top of the propeller. The shaft length is another name for this measurement. The normal outboard installation puts the transom of the boat at the same level as the bottom of the outboard’s engine section.

The location of the exhaust port on the bottom portion of the outboard engine has a role in defining the outboard’s height. When the boat is idle, this exhaust port should be approximately an inch above the waterline. As a result, the exhaust may flow freely when the engine is idling.

The performance of the outboard motor should also be taken into account when calculating the outboard’s mounting height. If the boat is capable of reaching a top speed of 10mph, we recommend raising the outboard by 1 inch every 10mph.

To avoid damaging the motor, do not lift it higher than 5 inches from its default position. When you raise the boat’s engine power, you boost its top speed while reducing its turning difficulty. As a result, the boat’s lift is reduced and its take-off speed is slowed. The boat may elevate to a position where the water inlets for the cooling system.

If they are out of the water, the engine may overheat. Extending the mounting bracket for the outboard motor may allow longer transoms. The brackets may raise the outboard’s total height by 1 inch.

Most outboard motors with less than 125 horsepower have a typical shaft length of 20 inches. Boat engines with a 20-inch shaft have a V6 engine type. The shafts of outboards built for saltwater use are often long.

The transom angle is an additional critical parameter to consider. This is the vertical inclination of the transom, which is measured in degrees. The transom of a boat may be level with no incline. It may even be as steep as 30 degrees.

Transoms typically have a 14-degree average transom angle. Boat transom angles play a crucial part in the flexibility of the boat trimming abilities. As a novice boater, you should understand the words “trim in,” “trim down,” and “trim out.” Every every one of them has a completely distinct influence on the boat’s performance.

To establish the proper boat transom angle, you don’t need to be an expert. However, you will need a grasp of how the degrees will impact the boat’s utility. Your boat doesn’t matter what kind of boat you have, large or tiny. Don’t rush your understanding of the transom and your boat as a whole.

You probably have a better grasp of boat transom heights. It’s time to pull out the ruler and acquire the exact measurements.


Optimal Outboard Mounting Heights

Do cavitation plates really work?

When taking off shallow, they assist avoid “blowout.” Boats can track better by using plates with wings. For each kind of boat, there will be different upgrades. Cavitation plates have the greatest impact on the performance of tunnel hull boats.

Will raising my outboard stop Porpoising?

The dynamic balance of the hull may be altered by varying the engine setback, propeller choices, and motor height. Each and every one of these may have a significant impact on the migration of porpoises.

The Dynamic Configuration is moved forward and the trim angle is further reduced as the prop shaft is raised higher.

How high can I mount my outboard?

For every 8 to 10 inches of space seen between the stern and the propeller. A boat rigger’s general guideline is one inch of engine lift. Propeller movement farther aft means it’s likely to encounter cleaner. It also includes “harder” water, so be more efficient.

Is it OK to leave the outboard tilted up?

It’s generally safe to leave an outboard motor tilted up for short periods of time, such as when you’re trailering the boat or performing maintenance on the motor. However, if you plan to leave the motor tilted up for an extended period of time, such as over the winter months, it’s important to take some additional steps to protect the motor.

Leaving the outboard motor tilted up for an extended period of time can cause the lower unit to become misaligned, which can lead to damage to the motor. It can also cause water to collect in the motor, which can freeze and cause damage to the motor during the winter months.

Bottom Line

Hope, we’ve provided all the symptoms of outboard mounted too high. It is not only necessary for your boat but also for a smooth boat ride. After all the fixation if you still face any issues, call a professional as soon as possible. It might be too dangerous.
