Zf Marine Transmission Troubleshooting – Facing Trouble With Your Transmission

ZF Marine

It can be very frustrating when you are out with your outboard after a long time. And you are facing trouble with your transmission.

Wondering about ZF marine transmission troubleshooting?

There can be many common problems and causes for your ZF transmission troubleshooting.

It can be a slow-shifting problem you may face. Or maybe the shifting is a little bit, Stuckey.

Disconnecting the shift cable will help you troubleshoot in these situations. Also cleaning the charge pump can help.

You must be still out in the blue about this matter. Don’t worry, this whole article is to clear your head.

Let’s hop up to the details.

3 Troubleshooting Guide of ZF Marine Transmission

ZF Marine Transmission problems

ZF Marine offers to reverse non-reversing and hybrid transmissions. Propellers, thrusters, steering systems, and microcontroller systems for a wide range of applications are available.

It has a power range of 10 to 12,000 kilowatts in commercial use. As well as fast craft, pleasure craft, and yachts.

Twin Disc creates over 100 marine transmission models ranging in horsepower from 35 to over 4000. Quiet operation with helical gearing is provided by their advanced marine transmission technology.

Shifting is smooth and quick thanks to hydraulic, oil-cooled clutches. In forward and reverse, there is full power and identical reduction ratios.

A set of internal clutches handles these functions. Different gear sets are engaged when the gear lever at the helm is moved.

Hydraulic pressure is generated by an internal oil pump in every marine transmission. As a result, these clutches are forced together to provide engagement.

As previously stated, the ZF transmission is extremely reliable. Ten years later, it is still going strong. Internal flaws have been rare, with many of them being user-related. Keeping a watch out for the rare fluid leak is the most important thing to do.

A service every 60,000 miles can extend the life of your ZF transmission. Alternatively, it can be done every six years.

In addition, not changing the oil has resulted in issues such as slow or jerky gear shifts. In some cases, transmission failure occurs prematurely.

However, many users complain about the outboard transmission for a variety of reasons. And these problems are fairly common in every other brand. Let’s talk about these issues in greater detail.

Problem 1: Slow Shifting Problem

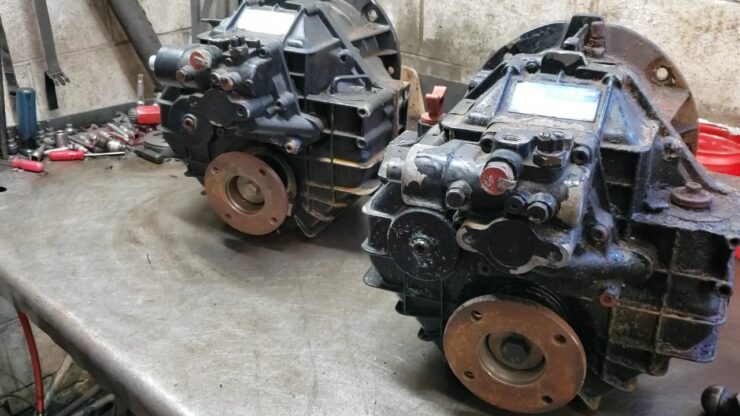

Slow Shifting Problem

When using a ZF transmission, you may experience slow shifting. The ZF Transmitter’s most prevalent problem is this one. You might notice a delay on both engines, reverse and forward.

The delay could be between 2 and 4 seconds. After moving the lever for about 2 seconds, the transmission delay occurs.

You could be blaming the oil for the problem. But it may not be the case in this situation. There could be a problem with your ZF transmission. On a windy day, this delay can be extremely inconvenient.

You should check the fluid and filter screen servicing before you do anything else. If the fluid and filter screen are both fine, your shift valve may be malfunctioning. Slow shifting is typically caused by a broken main oil pressure relief valve spring.

Solution: Remove the Shift

The shift is easily removed with a screwdriver. The process is kind of similar to shift linkage adjustment.

Then you can try to repair the valve. But if you replace the valve it would be great. Here are some good-quality valves that you can try for your ZF transmission.

These valves are topnotch in quality. And they will serve your transmission well.

Let’s get back to another common problem that generally ZF transmission users face.

Problem 2: Stuckey Shifting Problem

Stuckey Shifting Problem

Haven’t you used your outboard in a long time? Then you may have a transmission issue.

At times, the port size forward/reverse shifter has been a little sticky. While attempting to shift into first gear you may believe the issue is limited to the cable.

But you could be mistaken, changing the cable might not help. The stickiness may lessen while using the lubricant. However, it won’t get to the bottom of the issue.

The issue could be with the transmission’s heat exchange hose. It’s possible that there’s a seawater leak.

Seawater would dribble onto the transmission’s shifter arm. And rust begins to stifle its movement.

Solution: Disconnect the Shift Cable

Here you’ll have to disconnect the transmission’s shift cable. Also, check to see if the shift arm moves and clicks easily. Do you have any trouble moving your arm? Spray rust around the shaft and work the arm until it easily moves and clicks.

Because you say the shifting is difficult. So, it’s possible that the lever isn’t going all the way into gear. With the cable removed, you can hear and feel a distinct detent for forward and reverse.

It’s also possible that the shifter cable has to be changed. Either at the end of the shifter or the end of the throttle lever to achieve full engagement. There may be additional issues that you must deal with.

Problem 3: Unusual Noise While Shifting

When the hours use a ZF transmission. While shifting gears, you may hear an unusual noise. It’s like bad trigger outboard symptoms of the outboard. And believe me, you are not alone.

This is a fairly common issue. And don’t be alarmed if you hear your engine sputtering. Or if the gear was not catching up with the pressure plate.

It’s possible that the charge pump isn’t producing enough pressure. At low RPMs, it is also unable to push the clutch and pressure plate together.

Solution: Clean the Charge Pump

Clogs in the charge pump are possible. The charge pump must be cleaned. The charger pump must then be rested. If the charge pump fails, you’ll have to get a new one.

It’s a machine, just like the engine. Ignore it and it will fail sooner. You may be stuck in forward, with nothing. A maritime transmission will eventually ignore someone who ignores it.


Zf Marine Transmission faqs

What is the cause behind a boat’s transmission slips?

Too much throttle in the reverse gear is a common cause of transmission failures. As a result, it can happen when you’re trying to avoid piling, when you need to get the boat off the trailer at a shallow ramp, or if you’re trying to avoid a downed skier while trying to keep the boat’s bow out of harm’s way.

Is ZF transmissions a good choice?

Yes, the ZF 8-speed transmission is a good choice. Internal defects have been few and far between in its over ten years of use, with many of them user-related. As a general rule, it’s best to check for fluid leaks.

What type of fluid is used for ZF6?

For the ZF6 transmission, the manufacturer recommends Mercon ATF. It’s reasonable to say that the Motorcraft Mercon-V automatic transmission fluid is the best alternative. It will aid the transmission’s shifting in all climates because of its anti-slip properties.

zf marine transmission

How do you check the oil on a ZF Marine transmission?

To check the oil on a ZF Marine transmission, you will need to locate the dipstick. The dipstick is usually located near the front of the transmission, towards the engine. Once you have located the dipstick, wipe it off with a clean cloth and reinsert it into the transmission.

Next, remove the dipstick and check the level of oil. The oil should be at or above the “full” line on the dipstick. If it is not, add more oil until it reaches that level.

Bottom Line

Thank you a lot for sticking with us till the end. Hope now you are clear about this matter of ZF marine transmission troubleshooting.

Transmission problems that you are unable to fix yourself should be taken care of right away. It’s best to console a professional.

But always remember not to neglect any issues because they can harm your transmission.
