How to Choose Correct Setback on Jack Plate – Explained

Choose Correct Setback on Jack Plate

A jack plate could speed up the process by raising the prop to its highest point. The true value of a jack is measured in years. The space between jack plate and the superstructure is known as the setback.

The leverage of the engine on the boat increases with the setback. The bow is raised from the water with the help of this leverage.

The setback also keeps its blade or stream far from the hull’s tumultuous water. This can help to improve overall performance.

So, how to choose the correct setback on the jack plate?

Selecting the proper setback on the jack plate is crucial. The setback enables the system to fully tilt up without hitting the transom.

But it requires the Jack plate to be completely raised. It’s less expensive than just a frame and has more adjustability.

This article will help you to learn more about how to choose the correct setback.

Jack Plate For Your Boat

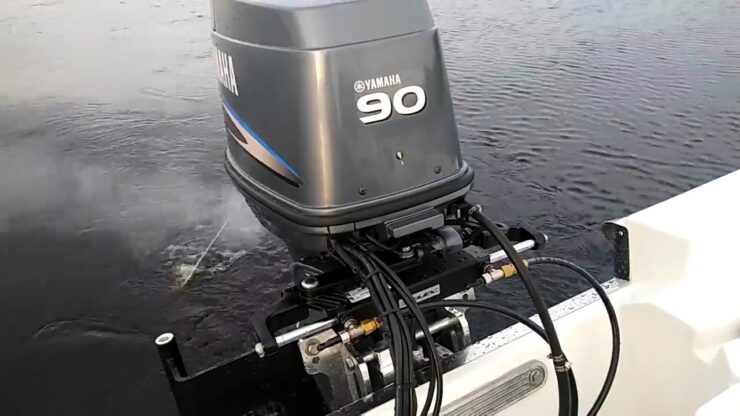

Importance of Jack Plate

Jack plates allow you to alter the position of your outboard motor. It allows you to achieve optimum results out of your sailboat in just about any situation.

But it can be challenging to choose the right plate. Because you need to deal with so many possibilities for lift methods, coatings, and setbacks.

A jack plate on a boat is used for several reasons:

1. Performance: A jack plate allows you to adjust the height of your engine, which can improve the boat’s performance, especially in shallow water.

By raising the engine, you can reduce the risk of propeller damage and increase speed and acceleration.

2. Improved handling: Adjusting the height of the engine can also improve the boat’s handling and stability, especially in rough water.

3. Shallow water access: With a jack plate, you can easily adjust the height of your engine to navigate in shallow water, reducing the risk of running aground.

4. Fuel efficiency: A jack plate can also help improve fuel efficiency by reducing drag and allowing you to optimize the boat’s trim.

Overall, a jack plate can provide greater versatility, improved performance, and increased safety for your boat, especially in shallow water and rough conditions.

Importance of Jack Plate

Your offshore is rarely in the optimal position for your operational environments if it’s fixed in place.

Whatever you’re doing, a jack plate allows you to shift your engine vertically and horizontally.

It would help you to have the propeller and shafts in the proper position.

Traveling in Shallow Water

Raising your motor raises the prop just above the ground, which reduces turbulence.

It can be happening because your boat’s speedometer is not working properly.

Having Difficulties Getting Started

Reducing your propeller can help you in getting a stronger hole shot. While increasing it can make it easier for your sailboat to be started easily.

A Faster Top Speed and Greater Gas Mileage

The majority of boat designers use a cautious prop pitch, and drag grows dramatically as speed is increased. Lifting your motor lowers the amount of prop in the water.

Lowering the amount of power required to maintain speed. Keeping the cavitation plate of your motor just above the waterline can greatly increase performance.

A Motor That Wants to Vent and Slip When it’s Under Load

A drop-down plate allows you to lower the propeller. It assists in propelling the boat through the water. It is time to have your boat out of the water.

Unless you can install a stern brace, you could use your jack plate to elevate your motor high enough to keep clear of the ramp.

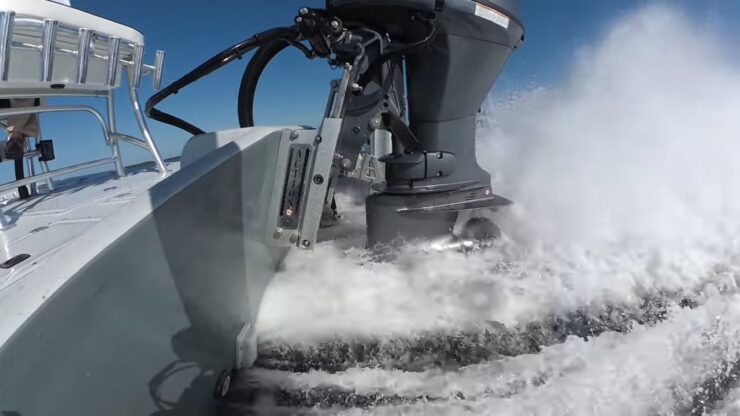

On a Jack Plate, How Do You Choose the Right Setback?

On a Jack Plate, How Do You Choose the Right Setback

The greater the setback, the greater the engine’s pressure on the boat. This leverage aids in lifting the bow from the water.

In addition, the setback maintains the prop or jet far from the choppy water. It could also benefit overall efficiency.

Your motor cavitation plate should be somewhat (1 inch) well above the bottom of the boat stern as a basic guideline.

You don’t want your engine’s cavitation sheet to drag in the water. If the engine is just too low, this might result in spraying, drag, and lost RPMs.

Outboards have a wide range of prop positions.  The suction plate is estimated from the base of the clamping bracket to the end of the prop.

On a “normal” bay boat with a flat transom, you’ll generally want a 6-8″ setback. And figure out how high you can mount the motor. Outboards mounted too high can cause problems.

The flatboat can be equipped with a 4″ Bob’s. Whereas the bass boat was equipped with a 12” permanent plate.

But the farther back you sit, the more plane leverage you have. If you lift it too high and never have a tunnel hull, you’ll lose water.

There is no definite guideline regarding how much offset your boat needs. It all hinges upon whether bow lift you require.

And also depends on how much the engine must be moved to shove into fresh water. Every clearance is required to pass hydraulic power rams, swim decks, and other obstructions.

If you don’t have adequate setback and clearance concerns, your hydraulic guidance may touch the tip of the boat stern as you tilt the motor up. We have jack plates in a variety of lengths, so you won’t need a setback bracket.

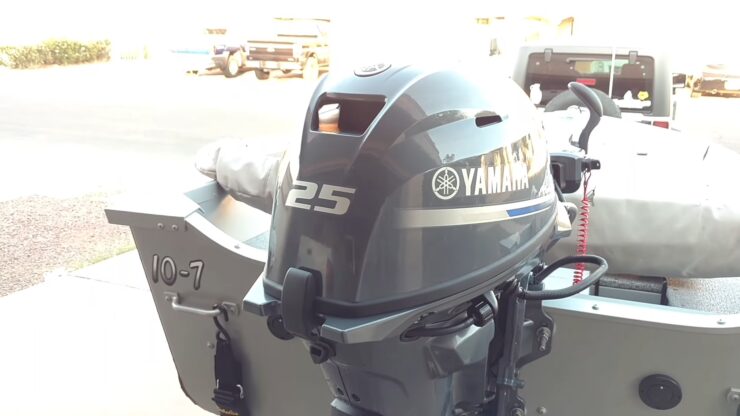

Hydraulic Vs Manual Jack Plate: Which One is Better?

Hydraulic Vs Manual Jack Plate

The choice between a hydraulic or manual jack plate depends on several factors, including personal preference, intended use, and budget. Both types of jack plates have their own advantages and disadvantages:

Hydraulic Jack Plate

  • Advantages: Quick and easy to adjust, provides precise control, requires less physical effort, and can be operated from the helm.
  • Disadvantages: More expensive, requires a power source and can be less reliable in rough conditions.

Manual Jack Plate

  • Advantages: Inexpensive, reliable, and easier to repair if needed.
  • Disadvantages: Time-consuming to adjust, requires more physical effort, and less precise control.

Ultimately, the choice between a hydraulic or manual jack plate will depend on your specific needs and preferences.

If you value convenience and quick adjustments, a hydraulic jack plate may be the better choice for you.

However, if you want a more budget-friendly option, a manual jack plate might be the way to go.

Which Coating Is Most Appropriate For a Setback?

manual jack plate

On our goods, we offer four different coating options, with each set of benefits.

1. Aluminum in its Natural State

Although raw aluminum corrodes, it does not erode as quickly as steel. When you’re on a low budget and only work in water, this is a fantastic alternative. These parts, on the other hand, degrade swiftly in brackish and saltwater.

2. Powder Coating in Black

This is a form of baked-on paint with a lustrous finish. This layer isn’t corrosion-resistant, and it can wear away over time. If you only work in freshwater, this is a good alternative, just like raw aluminum.

Blackjack plates, on the other hand, are ideal for fishing and waterfowl hunting since they do not reflect light that can attract game. You can easily powder coat at your home.

3. Anodized Aluminum (Clear and Black)

Anodizing oxidized aluminum’s surface, results in a hardened, highly corrosive coating that won’t peel away. We use two types of anodized aluminum to create jack plates.

When contrasted to raw aluminum, clear anodizing has a little gold hue.

This provides better corrosion resistance than raw aluminum, making it suitable for use in brackish and saltwater.

Our black anodized plates have a more durable surface that resists seawater corrosion than our clear anodized plates.


Why is it important to choose the correct setback?

The correct setback is important because it affects the performance and handling of the boat. An improper setback can cause poor acceleration, reduced top speed, and poor handling, especially in rough water conditions.

Is it true that a jack plate makes your boat go faster?

In bass boats, jack plates boost performance by elevating the blade to its highest altitude. It also reduces drag which eventually increases speed and fuel economy.

On top of that, a setback significantly means a longer sailboat. On something like a chop approaching the bow, the ride should be improved by putting the motor back more.

Is it necessary to submerge the cavitation plate?

The cavitation plate should indeed be flush with the surface of the water.

Like a rule of the thumb, about every one foot rearward, it ought to be about 1 inch well above the keel. It would be the same if you do have a euro transom, brace, or another similar device.

You can raise the outdoor motor on the transom. If the cavitation plate is submerged, raising the motor may improve performance.

Is it true that a Jackplate will offer me an additional bow lift?

Certainly, a jack plate would be beneficial. It shifts the center line back on the hull, giving the motor more leverage over the boat.

As a result, the bow is lighter and easier to tote with the motor/prop combo. There are no drawbacks to installing a jack plate as provided as the boat’s stern is in great condition and capable of handling it.

Are there any general guidelines for choosing the correct setback?

There are some general guidelines for choosing the correct setback, such as having the engine in line with the transom for maximum speed, or having the engine slightly forward of the transom for improved handling and maneuverability.

However, the exact setback will vary depending on the specific boat and conditions.

What happens if I choose the wrong setback?

If you choose the wrong setback, you may experience poor performance and handling, which can be dangerous in some conditions. If you have any concerns, it’s best to consult with a marine mechanic or boat manufacturer.


choosing the correct setback on a jet plate

In conclusion, choosing the correct setback on a jet plate is important for the performance and handling of your boat.

The correct setback will vary depending on factors such as the type of boat, the weight of the engine and other gear, and the type of water you’ll be boating in.

While there are some general guidelines, it’s best to consult with a marine mechanic or boat manufacturer for specific recommendations.

Adjusting the setback after installation is possible, but if you have any concerns about the setback on your boat, it’s important to address them to ensure safe and optimal performance.

I hope you have learned all about how to choose the correct setback on a jack plate. It’s not that challenging. You are capable of doing it by yourself with the help of the article. Make sure to take professional help if anything goes wrong.
