Mercruiser Shift Interrupter Switch Adjustment 2024: Troubleshooting

Troubleshooting Mercruiser Shift Interrupter Switch

With constant use of anything, wear and tear is obvious. The same goes for your Mercruiser.

With time, you may face problems with your switch adjustment.

However, with a few tweaks, you can quickly address the problem.

So what should you do for Mercruiser shift interrupter switch adjustment?

Firstly get your water muff on and lower the back engine. Then check the cables.

Most of the time you just need to replace them. If the cables are in good shape, the shift lever stud should be examined.

Then, check the shift propeller shaft and adjust the barrel. Then finally evaluate the clutch.

In our post below, we’ll show you how to do that.

Want to know more about Mercruiser shift interrupter switch adjustment? Then keep on reading.

Let’s get started.

How To Adjust Switch For Mercruiser Shift Interrupter?

The Mercruiser boats are pretty amazing for their speed and effectiveness. But with constant use over the years, they call for certain adjustments.

Over constant use, certain bolts of the engine may shift or become loose. In the case of the shift interrupter, the same is true.

This kind of problem is seen in many devices, just like- minn kota talon facing problems.

Today we will tell you the troubleshooting for the Mercruiser shift interrupter switch adjustment. Here’s how to do it-

Required Materials

For this tutorial, you will be needing a few tools. These are:

  • Open-end wrench
  • Pliers
  • Screwdriver

That’s it! With these simple tools, you can fix your Mercruiser. You will also need a helping hand for free of the steps.

Step 1: Place the Water Muff

You need to adjust your Mercruiser on land. So the first thing you need to do is put on your water muff.

Make sure the water muff is on both sides. It should cover the water inlet completely on both sides.

You should also make sure that the lower engine is shifted downwards. This is crucial for the engine’s health.

After you’re done with this, head towards your engine.

If you have any propeller for Mercruiser 3.0 Alpha One that may come in the way while working, then try to take it off.

Step 2: Check The Cable

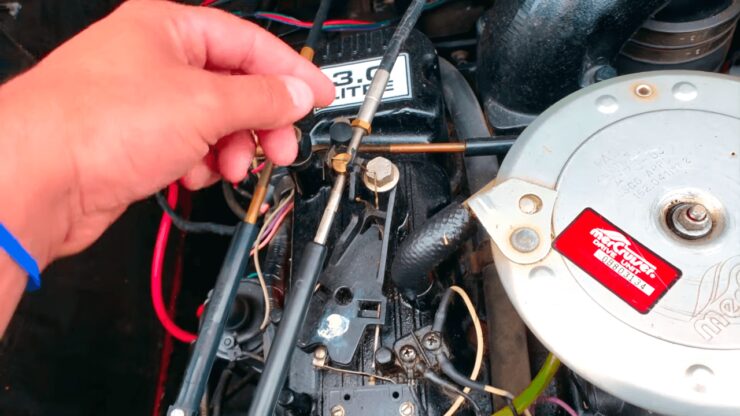

Mercruiser Shift Interrupter Switch Cable

Firstly, open the engine panel and locate the shift control plate. It should be close to the left valve cover or adjacent to the exhaust elbow.

Then look at the shift cable to see if it’s in good shape. Oftentimes the cable is responsible for your engine not working. So you need to make sure whether it is in good condition or not. Look for rust, corrosion, or any other form of damage on the cable.

If your shift cable has gone bad, then change it. If the cable is in good shape, go to the following step.

Step 3: Check The Shift Lever Stud

Now check the shift lever stud’s position on the shift plate  Ensure that it is situated at the border of the opening beside the pivot point.

With an open-end wrench, loosen the stud nut and move it. Tighten the nut after pushing it into place with your fingertips.

Step 4: Shift Propeller Shaft

You will need another person to assist you with this step. Make your assistant twist the propeller counterclockwise. At the same time, use the controls at the driver’s station to adjust the cable into the wide-open throttle position.

Carry on like this until the propeller shaft comes to a complete halt. The clutch is fully engaged when this happens. The shift cable is pulled inward by this motion.

Shift Propeller Shaft

Step 5: Adjust The Barrel

To remove any slack from the cable, pull on the shift cable guide. Remove the lock nut that secures the adjustment barrel. Using pliers, remove the clevis pin.

After removing both the items, keep an eye on them. Since they are pretty small, you may end up losing them.

Many prefer throwing away the old clevis pin and using a new one. If you want to use the same, make sure you use the finest one.

Separate the brass adjustment barrel from the post after you’ve removed them. Adjust the barrel by spinning it until the slack is gone.

Spin the barrel four times in a clockwise motion. Replace it on the mounting post once it’s finished. Then seal it back with the clevis pin.

Step 6: Evaluate The Clutch

You’ll need your assistant’s assistance once more. Make your assistant turn the propeller counterclockwise until it comes to a complete stop.

Simultaneously, you should reverse the settings and switch to wide-open throttle mode. The clutch is fully engaged when this symbol appears.

Remove the cover from the controls if the clutch does not engage. Then look for the stud that adjusts the shift lever.

After loosening the stud with an open-end wrench, retest. While slightly raising it inside the slot. Reverse the procedure until the clutch engages.

Step 7: Test It Out

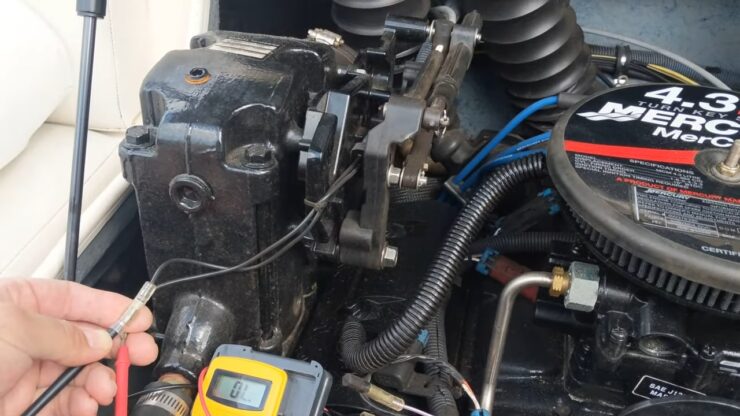

Mercruiser Shift Interrupter Switch shift control lever

Once you’re done with the engine setup, go to the control panel. Turn on your Mercruiser and set the shift control lever to “neutral.”

Examine the engine shift interrupter switch. Ensure that the roller or plunger is centered directly above the switch frame’s central indentation.

Look for signs of damage or stretching if the cable is out of place. After checking the cable, make sure all connections are secure.

It can be that the cold weather made your cable stiff. In that case, you’ll have to unfreeze the steering cable. The overall state of your cables should be in good shape.

The aforementioned steps should work for switch adjustment. But if it doesn’t, seek help from a professional. Or you can contact the manufacturer for better insight.


What does a shift interrupter switch do?

This switch makes it easier for the vehicle to return to neutral. It will be extremely difficult to obtain a neutral if the switch is broken or disconnected. The switch may “over-activate” if the shift cable is broken. When you shift, the engine will stall.

Where is the neutral safety switch on a boat?

A neutral safety switch is found in the engine control handle. Most small boats with outboards, outdrives, and gasoline inboards fall within this category. The switch is located on the shift lever in some transmissions. In Mercruiser, it is situated behind the transmission.

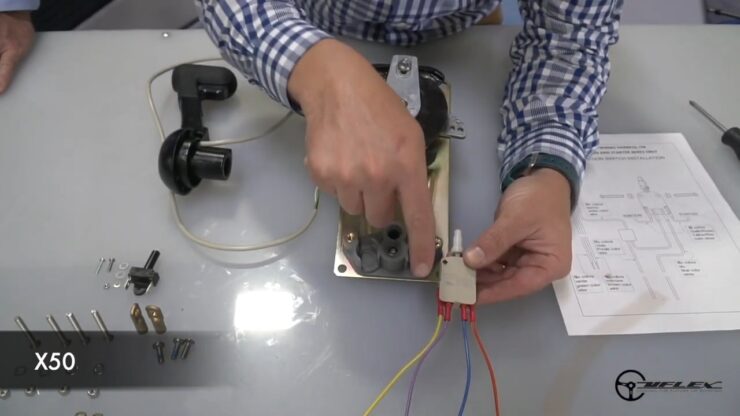

neutral safety switch on a boat

Can you drive with a bad neutral safety switch?

You can get away with driving with a defective neutral safety switch.

But there’s a good probability the engine and transmission will be damaged.

So getting it fixed is highly important.

What does Mercruiser shift assist do?

Mercruiser’s shift assist feature is designed to make shifting gears easier and smoother.

It does this by automatically engaging and disengaging the clutch, which reduces the amount of effort required to shift gears.

This can be a valuable feature for beginners or those who are not experienced in shifting gears.

What is the ACC switch on my boat?

The ACC switch on your boat is a switch that allows you to control the accessories in your boat.

These accessories can include things like your lights, your stereo, and your fish finder.

The ACC switch is usually located on the dash of your boat.

Final Words

Now you know what to do for Mercruiser shift interrupter switch adjustment.

So, if you have an issue with your switch, simply follow the procedures listed above.

You’re now ready to go.

We hope you found this article to be informative.

We made every effort to describe each step in great detail. So that you may easily follow them.

Thank you for being patient and staying with us till the end.
