Are you facing unwanted issues with your favorite boat? I can understand how frustrating it can be for a boat lover. On top of that if the problem is with the tachometer then it gets more confusing.
Since it’s a crucial part of your boat engine, a nonfunctional tachometer means a nonfunctional boat engine. Who wants to encounter such situations right?
So, here comes the question, why is my Boat tachometer not working?
There are quite a few reasons for which your boat tachometer might not respond. May the tachometer be inoperative. Or maybe there is a needle stuck, erratic reading, or inconsistent reading. No matter whatever the reasons, it needs to be fixed as early as possible.
Anyways, if you have some spare time, here is an entire article to enlighten you. You will get an in-depth idea regarding this issue.
Let’s jump right into it!
4 Common Reasons Why Boat Tachometers Not Working
There are some common issues for which you face dysfunctional tachometers on your boat. Some of the common reasons are stated below:

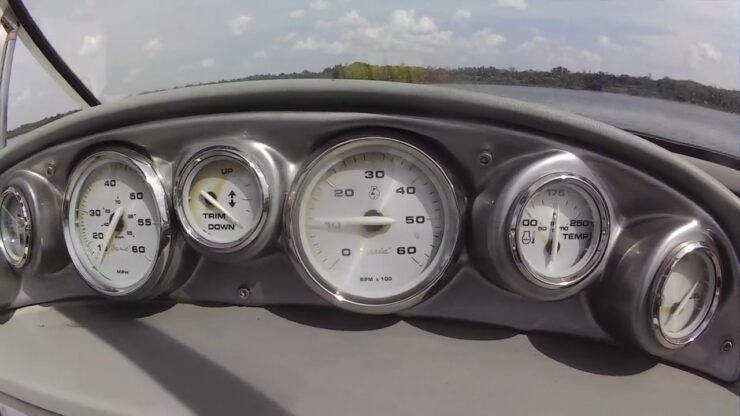

Reason 1: Inconsistent Low-high Reading
Inconsistency in the tachometer reading is the indicator of the boat tachometer not working. There are a few reasons why this situation occurs.
Maybe you have replaced anything in recent times. It can be the tachometer itself or the Alternator.
There are some tachometers that set the gross range through the switch. Here potentiometer helps to adjust the gain. You can manufacture the documentation of the switch correctly or recalibrate the switch using a potentiometer.
Another way to detect the unusuality is using a stab tachometer. It has a digital adjustable strobe reader or indicator.
By restarting and increasing the engine speed you can keep track of the tachometer pulley. Through these observations, you can identify the issues in reading.

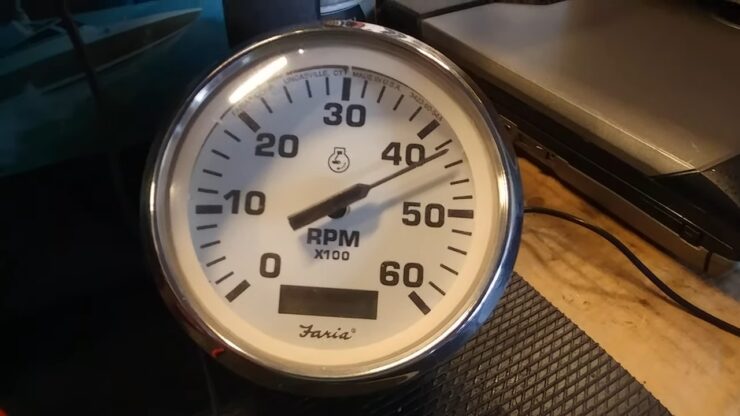

Reason 2: Stuck Needle
The tachometer needle can be stucked. It can also be pegged permanently. There are a few reasons behind this happening. One of the reasons can be that the tach case is too tight. This might happen due to vibration or excessive heat.
To fix this issue, try to loosen up the clamps. Which are holding it and trying to tap it in the face of the needle. If this way the needle gets free, tight the clamps again to hold the needle again.
Excessive electric pressure is another reason for needles to get stuck. Disconnected battery cable during the running engine.
To correct this issue simply use a magnet. You can resolve this by placing a magnet over the needle on the faceplate. Next, you have to pull the needle-free. Thus, you can resolve this issue.
Reason 3: Erratic reading
Erratic is another indicator of dysfunctional tachometers. It can be caused due to irregular connections or cable issues. Electric noise is another reason for erratic reading.
To solve this issue, you need to check on the wiring first. Move or wiggle each wire to identify the problematic one. In that case, you need someone to keep eye on the tachometer to observe the response.
There is another way to solve this issue. Have you found the problem only during the autopilot running or sending messages via HF radio? In that case, you can go for this one. A resistor is all you need to set in the signal line to avoid it.
The placement should be at the end of the tachometer wire. You can experiment with a resistor according to your system. Usually, a 10 Kohm resistor can show the magic without hampering the calibration.
Boat throttle cable problems can also be troublesome sometimes.

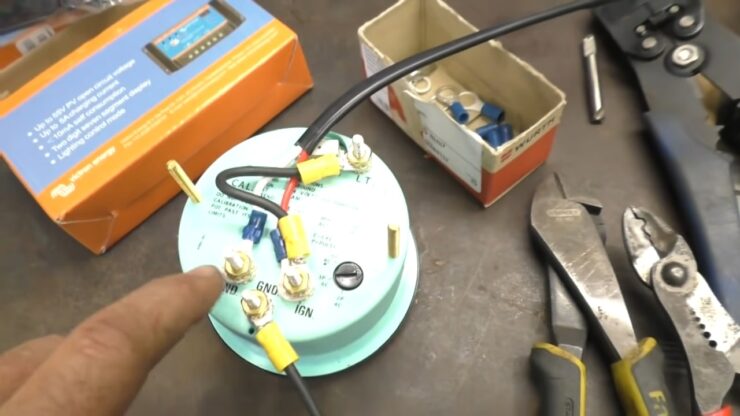

Reason 4: Inoperative tachometer
Another common issue with tachometers is the inoperative tachometer. To figure this issue out, you need to make some observations.
Firstly, when you switch on the ignition. Observe if the difference between positive and negative terminal is 12Vdc or not. If not then the problem might be in the positive terminal or on the ground side.
You can ensure it using a voltmeter. If you find the correct signal the problem might be at the input signal. Again with the voltmeter, you can figure it out. First, remove the signal wire and set the voltmeter in AC volt to connect it.
Just start the engine and speed it up. You will see some reading on the multimeter. Have you observed any pulse stream? And the problem is still there after reconnecting the signal wire? Then the problem might be in the tachometer itself.
If no pulse stream is found, disconnect the signal wire on the signal. And also repeat the test there. You might detect the pulse stream at the end of the tachometer.
Then the problems with the wiring.
Boat Tachometer Not Working: Some Quick Fix
Well, don’t worry! I’ve got your back. I’ve gathered all the possible reasons in this article. So, here are some instant suggestions to quickly fix the boat tachometer issue.

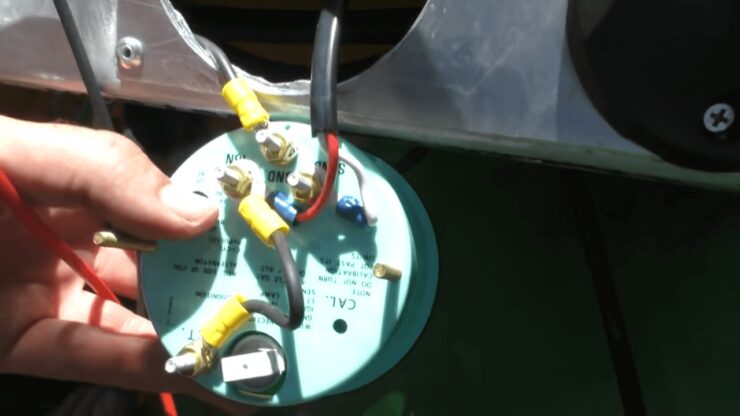

Check Wiring Connection
Proper wiring plays a vital role to keep the boat tachometer functional. If there is any wrong wiring or inappropriate wiring, you might face a nonfunctional tachometer.
Ensure if the problem is in the wiring. To do so check the wiring diagram manual and fix the unusuality.
Check the Fuse
Fuse issue is quite a common thing in terms of the tachometer. If you find your fuse is blown or maybe it’s inoperative that might cause your tachometer trouble.
Just remove and replace the fuse with a new one and reset the tachometer. It might start working again.
If there is any interruption during calibration then you might face issues with the tachometer. In that case, all you can do is reset the tachometer.
It might start functioning again after you reset the whole thing one more time.
Check the Jumper
There are some tachometers whose jumper is located on the back of the tachometer. You can get access to it by opening the back of it.
Check if there is any loose jumper on the back. You might find a switch right there. Try rotating that switch a few times. The switch is off and on a few times. Reset it back to the original place and check again.
In some cases, you might face issues with your gas fuel tank as well. Do fix those before It gets worse.
What are the abnormalities in the tachometer to indicate any issue?
You might detect abnormalities in the tachometer like a blown fuse or fluctuation in reading. This might cause an inoperative tachometer. In those cases, check the fuses along with moving every wiring. This is to trace where the exact issue is located.
What is the tachometer operated by?
The tachometer is operated by the engine as it is one of the parts of the engine. It works by magnetic pickups near the rotating engine. It produces electric pulses at a certain frequency.
How does the tachometer work on a boat?
If it is an inductive tachometer, then the tachometer works through an inductive magnetic sensor. It detects the change in magnetic flux. It transmits an on and off pulse to the meter. It counts and displays the speed of the engine.
How do you test a boat tachometer?
One way is to use a multimeter to test the resistance of the tachometer. Another way is to use an oscilloscope to look at the waveform of the tach signal. And finally, you can also use a strobe light to check the timing of the tach signal.
Where does the tachometer get its signal?
The tachometer gets its signal from the engine crankshaft. The crankshaft position sensor (CKP) measures the rotational speed of the crankshaft and sends a signal to the engine control unit (ECU). The ECU then calculates the engine speed and sends a signal to the tachometer.
Is a tachometer necessary on the boat?
If you typically only use your boat for leisurely activities like cruising around the lake or river, then you probably don’t need a tachometer. However, if you frequently race your boat or participate in other high-speed activities, then a tachometer can be a valuable tool.
A tachometer allows you to monitor the engine’s RPMs (revolutions per minute). This information can be helpful in ensuring that your engine is operating at peak performance and not being overworked. Additionally, some engines have maximum RPM limits that should not be exceeded. By monitoring the engine’s RPMs with a tachometer, you can help avoid costly repairs down the road.
That is it for now. We hope you could solve all your queries about the Boat tachometer not working, through this article.
Remember, this is not an unusual occurrence for people dealing with boats. The solutions are pretty straightforward. Just keep some tricks in mind and you are good to go.
Before you go, be sure to take some time to read our solutions on why is boat speedometer not working. Find out how to troubleshoot the problem and fix it.
We are done. Safe boating!
