Motorguide Xi5 Troubleshooting – Issues And Solutions

Motorguide Xi5 Troubleshooting

Motorguide Xi5 is one of the most popular wireless trolling motors. But just like any other electrical device, it can have some problems as well. Knowing how to troubleshoot can help greatly to reduce your hassle. But do you know about Motorguide Xi5 troubleshooting?

Your Motorguide Xi5 can face different problems like power loss, not responding to commands, motor failure, etc. In this scenario, you can troubleshoot it by various means. Sometimes it may require modifying one or two settings, or changing components. In fact, at times expert help may be needed.

This highlighted portion is very less to give you a complete understanding. But don’t worry; we’ve got a full article for this. Please keep reading along to know everything in detail.

8 Motorguide Troubleshooting Ideas

We know how sad you can get due to your trolling motor failure. That’s why we have discussed 8 ideas for Motorguide Xi5 troubleshooting. First, we talked about the issue and then gave the troubleshooting idea for that specific issue.

So, let’s get to know them one by one.

1: Cruise Control Problem

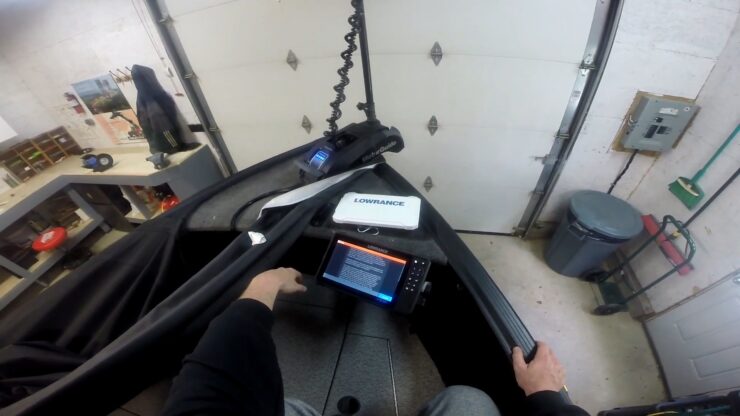

Motorguide Xi5 Troubleshooting

Sometimes the cruise control system of the Motorguide Xi5 malfunctions and it doesn’t work properly. Speed can not be adjusted as mentioned in the manual. It just reaches the highest level and stays there until the motor is turned off.

Solution

Check your remote batteries and see if they are working properly. Also, see if the “cruise control” button is functioning properly or not. For multiple remotes, make sure that the one in your hand is actively controlling the motor. If the above suggestions don’t work, then take it to the professionals. Because sometimes there might be production faults.

2: GPS Not Working

GPS is a very important function when you’re trolling with your boat. It helps to accurately measure the location and other data. So, when it stops working, it creates big chaos. Loose wiring connections can cause this problem. Also, faulty circuit boards or fuse connections can cause this problem.

Solution

Check your wiring connections. Sometimes wirings get damaged inside the unit and cause the GPS to malfunction. Also, check the fuse and the battery. Replace the fuse if needed.

If the above solutions don’t work, check the circuit board. Circuit board problems can be pretty complex to deal with. So, it’s better to take professional help in this regard. If you have a warranty, then you can do it for free.

3: Wireless Command Issues

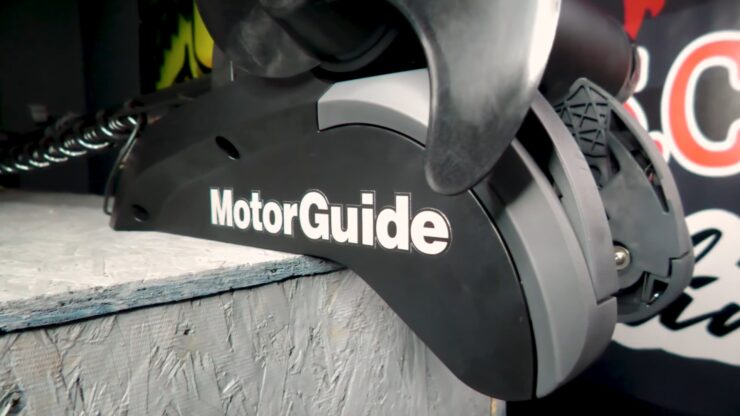

Wireless Command Issues

Due to weak motor batteries, foot pedal batteries or problem with food pedal, wireless commands don’t work. This can also occur due to a lack of synchronization with the wireless controllers.

Solution

Recharge the battery or replace it if needed. Sync with the wireless controllers properly. Activate the wireless foot pedal. Also, activate the handheld wireless controller.

4: Power Loss Issue

Sometimes your motor doesn’t get enough power to operate properly. This can happen due to loose battery connections. Also, if the propellers are damaged, this problem can occur. Water intrusion in the lower unit can cause this problem as well.

Solution

Check the battery connections and correct the connections. Recharge the battery, and replace it if needed. However alway remember to check the charging system before recharging. Replace the propeller if it’s damaged fully. In case of water intrusion, you need to take it to the customer service center.

5: Unusual Noise And Vibration

Excessive noise and vibration can be annoying. Also, it causes sound pollution. Loose propellers, damaged bearings, cracked magnets, etc. can cause such problems.

Solution

If the propeller is damaged, fix it as per instructions. Replace the propeller if needed and install a new one. However, if the bearings are damaged or the magnets are cracked, you might need to contact the service center.

6: Motor failure

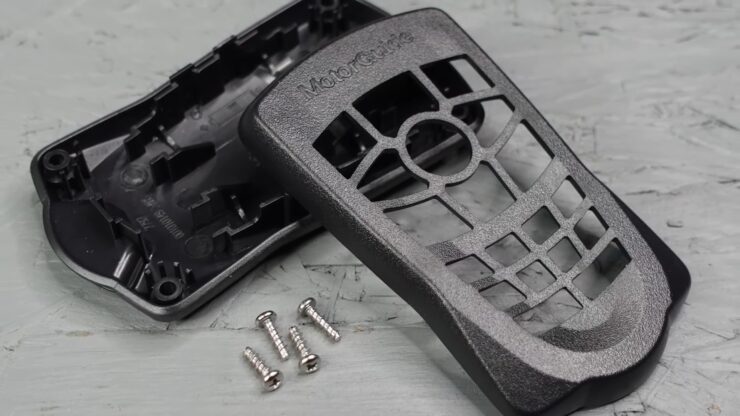

Motor failure

This occurs when the motor can’t run to its full potential. Due to this, you don’t get the desired output. There are various reasons for this. For example, loose electrical connection, overheating of the motor, loose propeller, etc. Fuse problems and faulty boat wiring can also be possible reasons for this issue.

Solution

If the connections are loose, fix them following the proper instructions. You may need to replace the propellers & fuse if they are damaged. In case of overheating, consult with the service center. Inspect the wiring connections properly where necessary.

7: Incorrect Temperature Reading

The incorrect temperature reading can be a major issue. If this happens, you won’t be able to understand the behavior of the motor. A probable cause of this issue can be the lower part of the motor not being submerged properly. Also, damaged nose cones or sonar cables can cause this problem.

Solution

Properly adjust the depth of the motor so that the lower unit is submerged fully. Contact the service center if needed. Finally, check if the temperature reading is okay or not.

8: Unremovable Propeller Blade

Sometimes the propeller blade seems hard to remove. This can occur due to bent propeller pins or amature shaft.

Solution

Use a putty knife on both sides of the propeller blades. Thus you can apply equal pressure so that you can remove it. Contact the service center if the situation seems out of control. So, these were the 8 common issues that you face in your Motorguide Xi5 along with the troubleshooting ideas.

Erasing the Receiver’s Memory

Here are some general steps to erase the memory of a receiver:

  1. Power off the receiver to prevent any accidental data input or loss during the erasure process.
  2. Locate the reset button or option in the menu system. The reset button is typically located on the back or side of the device, while the menu option can usually be found in the settings or system preferences menu.
  3. Press and hold the reset button, or select the option to erase memory in the menu. Depending on the device, you may need to use a paper clip or a similar object to press the reset button.
  4. Follow the prompts to confirm that you want to erase the memory. The prompts may vary depending on the specific device, but they will typically warn you that all data will be permanently deleted.
  5. Wait for the receiver to complete the erasure process. This may take a few minutes, depending on the size of the receiver’s memory and the speed of the device.

FAQs

Where can I find the serial number on my Motorguide Xi5

Can you reset a Motorguide Xi5?

Yes, it’s possible to reset your Motorguide Xi5. You can do it by going to the manual settings option.

Is there any fuse in trolling motors?

Yes, there are fuses in trolling motors. The fuse is situated in the positive cable line. It’s used to protect the electrical components.

Where can I find the serial number on my Motorguide Xi5?

You can find the serial number under the bottom cover. This serial number is needed for claiming warranty services.

Is there any built-in transducer on Motorguide Xi5?

Yes, there is a built-in sonar transducer on Motorguide Xi5. This is compatible with most of fishfinders and chart plotters.

Conclusion

This marks the end of Motorguide Xi5 troubleshooting. We tried to cover all the aspects and provide you with proper troubleshooting ideas. We hope you benefited from this. Always be careful with your trolling motor and ride safely. That’s all from us. Have a nice day.
