6 Symptoms of Bad Spark Plugs Outboard: Troubleshooting Engines

https://askangler.com/symptoms-of-bad-spark-plugs-outboard/

Spark plugs are an important component of the ignition system in outboard motors. They provide the electrical spark necessary to ignite the fuel in the combustion chamber and power the motor.

Spark plugs consist of a center electrode, a ground electrode, and a ceramic insulator that isolates the two electrodes from each other. The spark plugs are screwed into the engine’s cylinder head, and they need to be periodically checked, cleaned, and replaced to ensure proper engine performance.

Are you facing some trouble with your boat engine? Among other things, it’s highly possible that your spark plug is causing the problem. It is very important to understand the symptoms. It will help you take action beforehand and could also save you some trouble.

So, what are the symptoms of bad spark plugs outboard?

Symptoms include the engine not starting properly, and the engine cutting out. And also loss of engine power decreased engine acceleration, etc. The color of the spark plug can also tell a lot about your engine. For example, if it’s bright white it means your engine is overheating and losing power.

This information is pretty vague and probably not enough. To help you, we have gathered everything we could find about bad spark plugs.

Let’s jump into the main part.

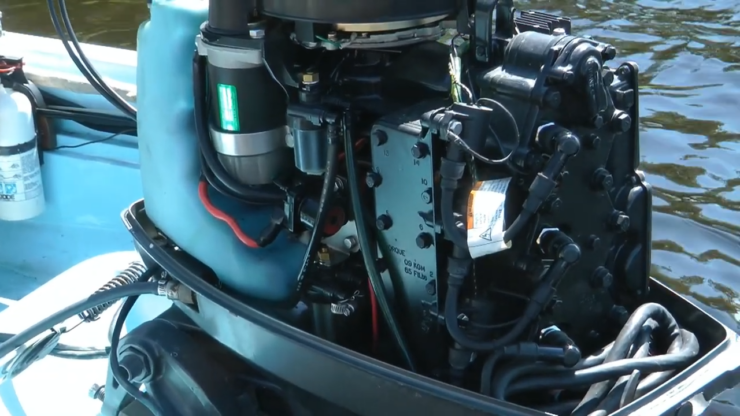

Symptoms Of Bad Spark Plugs

bad spark

If the spark plug is failing, it will affect your boat engine. You need to regularly check for symptoms. Always have an idea of how long do spark plugs last in an outboard.

Also, check for visible signs. Spark plug color and state can spill a lot about the condition of your boat engine.

Here is a chart to make it simpler for you.

Symptoms Visible Sign Solution
Trouble starting the engine Black color, built up residual carbon Clean
Engine cutting out Wet and oily Wash
Engine losing power Bright glossy white Retighten
Decreased acceleration Bright glossy white Retighten
Spark plug failure Damaged Replace

Now, let’s have an in-depth discussion.

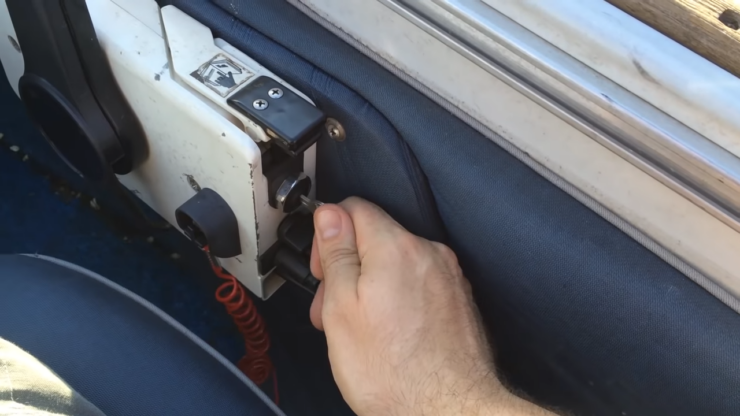

1. Trouble Starting The Engine

engine wont Start

An engine that won’t start right away is the first sign of a failing spark plug. Then if you visibly check the plug, you will see it has carbon residue. Because of that, it will appear black.

This indicates that the engine is operating on low heat and low compression. And a possibility of a vacuum leak or the spark plug gap being too high.

These reasons result in the engine not having enough power to start. So, you have trouble starting the engine.

Fix

If you are facing this symptom we have just explained, then you need to clean it. To clean it up, take a brush that has soft wires.

Then gently clean the black-colored residual carbon from it. Make sure to clean both ends properly.

2. Engine Cutting Out

Your engine might cut off midway or you’re not getting any throttle response from the outboard. This problem here can be caused by a wet or speckled spark plug.

The wet residue means that there is water in the combustion chamber. And It’s causing the gasket head to fail. Which ultimately causes the engine to hesitate or cut out.

Fix

If you find your spark plug in this state you need to wash it. It’s best to wash the spark plug with soap and warm water. Don’t worry, water or soap won’t damage your spark plug.

3. Engine Losing Power

How to Test Spark Plugs on an Outboard

When the spark plug is overheated, it will get a bright white glossy or glazed look. This is a very dangerous case.

It means the engine is running at a temperature that is too high. Or it could also mean that the spark plug is improperly tightened.

It will cause the engine to lose power, which will soon cause the engine to fail. This is why it is best to take action as soon as you detect the problem. If the engine is ruined that will cause another series of problems.

Fix

A bad spark plug does not cause engine overheating. If the spark plug is overheating, that means the problem is in the engine. So, to fix the engine from overheating, get professional help.

If the spark plug is improperly tightened, then take it off and install it again. But make sure to do it properly this time.

Otherwise, the problem won’t be solved.

4. Decreased Acceleration

If an engine is losing its power, then it will slowly but slowly lose performance. As we have said before, an overheated spark plug or engine can cause this. We also told you that it’s a serious issue and needs addressing as soon as possible.

Fix

Just like the previous problem, you must properly tighten your spark plug. If it was installed properly then get professional help. Engine issues are sensitive and require expert attention.

5. Spark Plug Failure

Outboard Plug failure

If you have a damaged spark plug your engine might fail to start. Visually check your spark plug to look for any signs of damage. Even though the spark plug could fail eventually while having no obvious signs of damage.

Spark plugs could fail internally. Meaning the electrical component it has is somehow non-functional. In this case, it will produce zero to no spark. If this is the case, you can get professional help or a spark plug checker.

Also, the gap in the spark plug could still cause a failure. It must be precise, even the difference of a fraction of a millimeter could cause problems.

In this case, too, call your mechanic or find a measuring tool to adjust the gap.

Fix

If your spark plug is visibly damaged, it is best to replace them. They are super cheap and impossible to repair. It may look fine but still not working, so replace it if that happens. Changing spark plugs is simple to do, it is just basic outdoor maintenance.

There are a couple of things you must know if you need to replace your spark plug.

  • Do not buy not automotive plugs, get marine-grade ones.
  • Get the spark plug that’s compatible with your engine. You can find that in the manufacturer’s manual.

6. Engine Sound

You can also determine the health of the spark plug by the engine sound. A faulty spark plug makes only two sounds.

  • The engine will make rough noises even when it is filled with fresh oil
  • No sound at all because it won’t start.

So, if your engine is making weird noises it’s better to check the spark plug. If you find any issues with your spark plug then you know what to do now. Bad spark plugs outdoor can damage your motor.

As a result, you may be required to transport your outdoor motor.

What Happens if I Don’t Change My Boat’s Spark Plugs?

SPARK PLUGS

If you don’t change your boat’s spark plugs, several issues can occur that can impact the engine’s performance and reliability. Here are some of the potential consequences:

  • Reduced power and acceleration: Over time, spark plugs can become fouled or worn, causing a decrease in engine power and acceleration.
  • Difficult starting: Worn or fouled spark plugs can make it harder to start the engine, particularly in cold conditions.
  • Poor fuel economy: Worn or damaged spark plugs can cause the engine to burn more fuel than necessary, reducing fuel efficiency.
  • Engine misfires: If the spark plugs are not firing correctly, it can cause engine misfires, which can damage the engine over time.
  • Engine damage: If the spark plugs are severely worn or damaged, they can cause damage to other engine components, such as the cylinder walls or pistons.

To avoid these issues, it’s recommended to check and replace the spark plugs according to the manufacturer’s recommended maintenance schedule. This can help ensure that the engine runs smoothly, efficiently, and reliably.

Tips for the future

Here we have gathered some tips for you from our experts. These tips will help you to take better care of your spark plug and increase your awareness.

For better engine health, it is recommended that you –

  • Check your spark plugs every 100 hours.
  • Replace your spark plugs every 300 hours.
  • Spark plugs are very cheap so replacing them is budget-friendly.
  • If you need help replacing them call your mechanic.

FAQs

Boat Lose Power At Full Throttle

Why Does My Boat Lose Power At Full Throttle?

One of the most frequent reasons is your powerboat. It may have trouble reaching the desired speed at full throttle as a spinning prop. This happens when the connection between the propeller and prop shaft on your boat is damaged. This damage causes the rubber inserts to begin rotating on their own.

How Do You Know If Your 2 Stroke Is Running Rich?

Here are some signs that your 2-stroke engine is running rich:

  • Black, oily spark plug: If the spark plug appears black and oily, it may be a sign that the engine is burning too much fuel, and the fuel-to-air mixture is too rich.
  • Dark, sooty exhaust smoke: Rich fuel-to-air mixture can produce dark, sooty exhaust smoke.
  • Reduced power and acceleration: When the fuel-to-air mixture is too rich, the engine may not be able to generate as much power and acceleration as it should.
  • Fouled spark plugs: If the spark plugs are fouled with carbon deposits, it may be a sign that the engine is running too rich.
  • Poor fuel economy: A rich fuel-to-air mixture can reduce fuel efficiency, causing the engine to burn more fuel than necessary.
  • Smell of unburned fuel: A strong smell of unburned fuel coming from the exhaust can be an indication of a rich fuel-to-air mixture.

If you notice any of these signs, it’s recommended to check and adjust the carburetor or fuel system to ensure the engine is running with the correct fuel-to-air ratio.

What Should 2 Stroke Outboard Spark Plugs Look Like?

The appearance of 2-stroke outboard spark plugs can vary depending on several factors, including the type of fuel used, the engine’s condition, and the operating conditions. Generally, a healthy 2-stroke outboard spark plug should have a light brown or grayish-tan color on the electrode tip and insulator. This color indicates that the plug is burning cleanly and efficiently.

If the spark plug appears black or oily, it may be a sign of incomplete combustion or oil fouling, which can be caused by issues such as a clogged air filter, incorrect fuel mixture, or a malfunctioning carburetor. On the other hand, if the spark plug appears white or glazed, it may be a sign of overheating or too lean of a fuel mixture.

It’s essential to check and replace 2-stroke outboard spark plugs regularly, as worn or damaged spark plugs can cause issues with engine performance, fuel efficiency, and reliability.

How Do You Check Spark without A Tester?

t’s possible to check for spark in an engine without a tester by following these steps:

    1. Remove the spark plug from the engine using a spark plug socket wrench.
    2. Reconnect the spark plug wire to the spark plug.
    3. Hold the base of the spark plug against a grounded metal surface on the engine (e.g., the cylinder head).
    4. Have someone crank the engine, or use a pull starter if available, while you observe the spark plug tip for a spark.
    5. If you see a bright blue spark, it indicates that the ignition system is functioning correctly. If you don’t see a spark or it’s weak, there may be an issue with the ignition system or the spark plug.

It’s essential to follow proper safety precautions when performing this check, including wearing insulated gloves and keeping loose clothing and jewelry away from the engine.

Endnote

So, this is it. In these ways, you can easily understand the symptoms of bad spark plugs outboard.

In this article, we have tried to discuss all the symptoms. And follow those tips that we have suggested to you. So that you can take better care of your spark plug.

And always be careful and make sure you have taken proper precautions.
