How to Increase Compression on a 2-Stroke Outboard – Boost Your Boat’s Performance

how to increase compression on a 2 stroke outboard

The 2-stroke engine is a relatively simple design that completes its power cycle (intake, compression, combustion, exhaust) in two strokes of the piston, which makes it very powerful.  A 2-stroke engine doesn’t use valves to regulate the fuel/air intake or exhaust gas exit, so it has fewer moving parts and is smaller and lighter.

Do you want to make your engine more powerful than before? So, it’s quite obvious you’re thinking about how to make it more powerful quickly. In that case, you should increase compression on a 2-stroke outboard.

There’s an arising question in your mind, which is how to increase compression on a 2-stroke outboard.

Outboard motors with two-strokes should have 100 to 120 PSI per cylinder. However, this is simply an estimate because a compression test must still be performed. You should also avoid having more than a 10% difference between your cylinders. This is crucial for avoiding problems along the way.

I am just giving you a preview of the article. For more in-depth details, you should scroll down and read the whole article. It won’t take more than 3 minutes to complete it.

Let’s not waste too much time and start reading.

How to Increase Compression?


First of all, and importantly, you must do a compression test to verify the engine’s durability. This also allows you to determine whether the engine has a good powerhead. The engine generates power when the piston rises upward in a cylinder.

The gasoline and air combination is then compressed to a specific point before being set on fire. The piston is pulled back down when your mixture bursts in the cylinder. You can face the motor not starting even if you start running.

For individuals in the boating industry, this implies that the lower unit’s gears revolve. And the transfer of momentum to the boat’s propeller causes the ship to move ahead. Based on the engine brand or kind, you might have to test the compression.

A wrench and sockets, which will allow you to remove coverings. You can also recycle plastics used to protect your ignition coils, which are required for testing. Once the coils have been removed, you may expose your spark plugs in this manner.

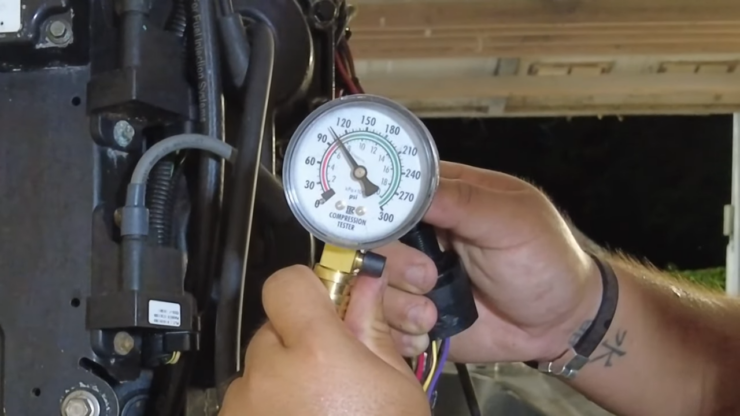

After that, you’ll need the proper deep-hole socket to remove your spark plugs. Then you’ll need your compression tester and a tool to turn your engine over.

Your local car shop should have a compression tester readily available. They are frequently sold for less than $50 in certain regions.

Hoses with various adapters on the ends are included with the testers. In this manner, you can accommodate spark plug threads of any size. The most critical factor is that the hose is compatible with your engine.

Fortunately, it is fundamental, so there should be no problems.

How to Increase Compression on a 2-Stroke Outboard?


Increasing compression on a 2-stroke outboard is not really difficult. Still, calling an expert to fix it for you for the first time is a sensible decision.

We are covering the ways in detail so that you can understand them perfectly. Let’s talk about it.

  • Two-stroke outboard motors should have 100 to 120 PSI per cylinder. However, this is only an approximate estimate because you still need to run a compression test.
  • Furthermore, you should avoid having more than a 10% discrepancy between your cylinders. This is critical for avoiding difficulties along the road.
  • Low compression can develop for a variety of reasons. A leak in the head gasket, for example, is frequently the problem with two-stroke outboards.
  • Additionally, the piston rings may ultimately break, resulting in compression difficulties. There may also be issues with the rod bearings on the crankshaft, which might fail.
  • If the compression is low, it is obvious. For example, power may be weakened or perhaps lost entirely. In rare circumstances, the loss might range between 1000 and 2000 RPM.
  • The hole shot may be harmed if you have low compression concerns. In addition to the disturbing sound in the engines while the motor is at a standstill. You may suffer from difficulty operating.
  • Mechanical difficulties are another symptom of inadequate compression. Generally, if your engine isn’t running correctly or has a harsh running operation.

To your mind, you might want to think about using low compression to solve this problem. Thankfully, it is not an insurmountable task. It all depends on when you discovered the problem and how severe it was.

In other cases, merely increasing compression will cure the problem once and for all. You should also check for water in the outboard motor.

Disassemble your engine and replace the joints as well as the rods and rings. You just need to repair and replace any items that have failed. You should also change the head gasket and tune the cylinders.

When repairing a two-stroke outboard with low compression, you should consider the expense of the work. It will be more costly to increase compression than to replace the engine entirely.

Is it Possible to Run a Motor with Low Compression?

fixing 2-Stroke Outboard

This is a critical question that many individuals have. Particularly if they have failed to boost or repair the compression level. However, despite the low compression, your engine may still function.

It also depends on how low the amount is and how serious (or not) the condition is. Another factor is that it is caused by other parts, the engine may start and stop.

Low compression in boats caused by a damaged bearing or carbon build-up is not a major issue. The engine should continue to run normally.

However, please remember that you will need to resolve this issue. Ignoring it alone may cause the system engine to blow up, resulting in a more serious problem. It will be really difficult to remedy later.

What Are The Symptoms Of Low Compression?

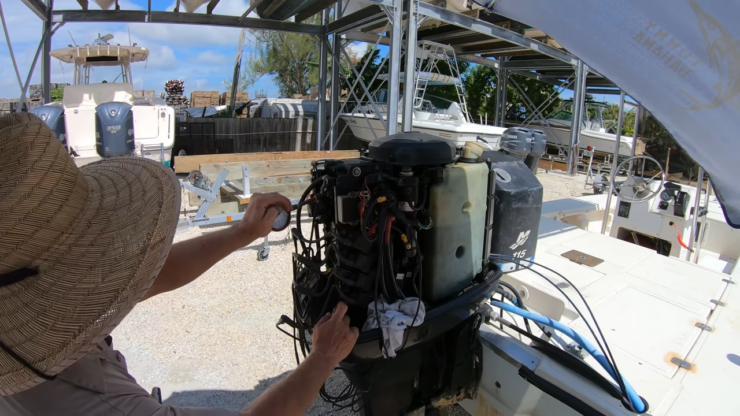

Outboard Compression

As you can undoubtedly see, a variety of factors effect low compression. This also applies to the symptoms.

When you simply have poor compression, most frequently. You’ll experience a diminution of power. say a thousand or two RPMs from your high end.

It could also be a poor hole shot. As well as rough running idle and a loud noisy running engine when it is idling.

These are also the signs for many other mechanical issues that could be going on with your engine. So don’t just get to the conclusion that you have low compression if your engine is just running rough or poorly.

Worn piston rings can cause incomplete sealing, resulting in lower compression and more difficulty in starting. Worn piston rings or reed valves that are no longer sealing properly may be the cause of the poor startability characteristic.


What can I do to increase my compression?

Simply changing the current head gaskets is one of the simplest things. Also, the most cost-effective ways to increase engine compression. By using steel shim gaskets instead of standard composition-style units. For instance, the compression ratio may be raised significantly.

Is it possible for a vacuum leak to create low compression?

Leaky valves, piston rings, leaking head gaskets, and other factors prevent the cylinder from shutting down. During the compression stroke, all this can produce low compression in a cylinder.

Is low compression a sign that you need to replace your engine?

In general, if one cylinder has low compression, the engine will start. However, you will likely encounter misfires and your car will run rough. Your engine will not start if there is no compression in all cylinders.

How can I tell if my bottom end has to be rebuilt?

Simply grasp the con rod and press and pull it, looking for a change. There will always be some side-to-side play, but there must be no up-and-down play at all. If there is play, the crank must be replaced, which necessitates a complete rebuild.

How do you fix a low compression outboard motor?

100 PSI per cylinder is the ideal level for a healthy engine. A burst head gasket is the likely cause of low pressure in two adjacent cylinders. If you discover you do have low compression, the only solution is to replace the leaking part whether it’s the piston, piston ring, camshaft, head gasket or valves.

Bottom Line

Have you got your answers yet? I hope you get all the answers about how to increase compression on a 2-stroke outboard.

You need an expert to establish if you need to increase compression on a two-stroke outboard. It is advisable to leave it to the professionals. Because this might be a difficult topic to deal with.

I really hope you like the article. That’s all I have for you today. Good luck.
