How to Mount a Transducer on an Aluminum Boat – Gather Equipment

fixing your outboard motor

Fishermen utilize a variety of instruments to assist them to discover suitable fishing areas. Even though fishing involves patience.

A transducer is among the most effective instruments available.

So, how to mount a transducer on an aluminum boat?

First, you have to gather some equipment. Such as mounting plates, stainless steel nuts, zip ties, bolts, sealant as well as sandpaper.

Then you have to choose the right place on the boat to mount. You have to drill and coat at the chosen place. Finally, you have to connect the transducer wires.

So, if you’ve been having difficulties discovering nice fishing areas recently. Then this article could just be the answer you’ve been looking for.

Let’s get going!

An Overview of Transducer Mounting

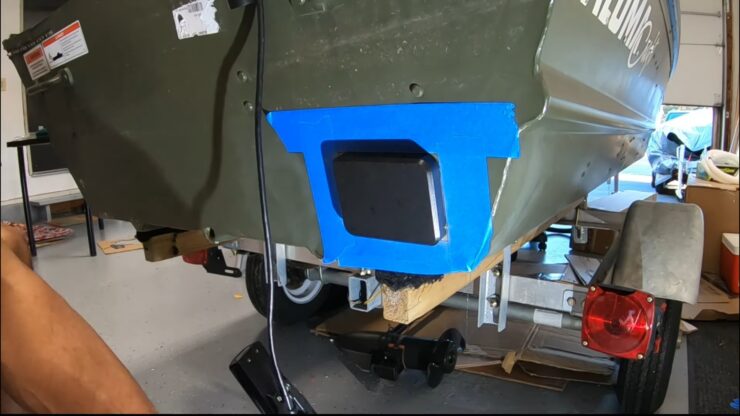

Mount a Transducer on an Aluminum Boat

The transducer aboard a boat functions as both an ultrasonic sender and receiver.

It lays the way for converting sound pulses into depth, shape, and other information. It’s sensitive enough to send signals to a fish finder when used for fishing.

It can also transform electrical pulses into acoustic energy via sound waves. As well as the other way around. When fishing, a fisherman should study the anatomy of the fish.

As a result, they can understand how it interacts with the fish locator. Each fish has a gas-filled air bladder.

When compared to conventional aspects (flesh & bone) of a fish.

Then it rebounds off the fish in a noticeable way. The transducer receives the notification from the echo and sends it back toward the echo sounder. It will seem like just a fish or even a landscape according to the variances.

Transducers are used in aluminum boats for a variety of reasons. A transducer, in addition to being used for fishing. It allows them to view underwater motions and structures as well as estimate water depth.

For two main reasons, most fishermen choose to fish from aluminum boats. Aluminum boats are very durable and they are also quite cost-effective. Yet what if you’ve chosen the proper boat as well as invested in the greatest rods.

The presence of air in the abdomen has a substantial impact on the fish’s buoyancy. The echo sounder picks up on the changes in density.

A transducer is one such dependable tool. A transducer is a powerful digital device that uses a transmitter to transform electrical energy into high-frequency sound. Sound waves are produced by transducers and travel through the water.

There they bounce back to return the signal. The transducer then will transform these waves to readable frequencies. Which may be used to identify topography and nearby fish.

It allows you to keep track of the sort of terrain you’re fishing in. As well as any activity under the water.

If you already have an aluminum boat and think a transducer may be useful. This article will walk you through the process of installing one as follows:

  • Obtaining the Required Equipment
  • Placement
  • Drilling and coating, then mounting
  • Connect to the Transducer Wires

Now Let’s find out something more detailed.

Monitor Positioning

You must pick the screen’s size and location. Just similar to any electrical gadget you use. You’d probably install it within the gunnels, where it’d be visible from the operating area.

When placed outdoors, it may be destroyed or smashed. Since an aluminum boat might convey excessive noise, it’s also crucial to separate the transducer. It’s best to put it in a casing made of filler materials.

But something rubbery to reduce vibration, which may cause noise. Whenever a transducer is put on a transom, it is simple to fasten and secure. It’s because there’s no noise in this location.

Additionally, water flows smoothly across the face of the transducer. It’s important to anticipate that the water flow will wash over the transducer when you’re on the water. Also, there are several rivets hidden someplace on the transom.

Because of the rivets, you must place the supports or ribs. Just likely, so that they do not obstruct the transducer.

But be careful to make sure that the connection socket and the cable are suitable. Which is for the transducer connector on the fish finder you’ve selected.

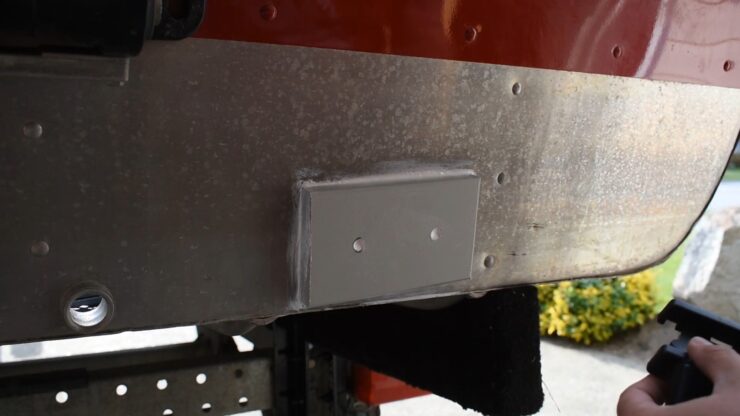

How to Install a Transducer on Just an Aluminum Boat

How to Install a Transducer on Just an Aluminum Boat

Most boaters would put the transducer on the transom. Since huge holes in the boat’s bottom are unneeded. You also won’t be worried about getting rid of the trailer bunks’ interference.

But keep in mind one thing. When it comes to mounting the transducer here on the transom. As water rushes beneath the hull as well as irritates the water flow. This may result in excessive aeration.

Simply follow these instructions to prevent any potential problems. But first, gather the following materials:

  • Transducer mounted on the transom
  • Drilling power tool
  • Electric cable for marine sealant
  • Masking tape or a cable clamp are also good options.
  • Bracket for mounting

Choosing the Right Mounting Angle

As a general rule, the transducer must be mounted on the starboard side. Which has the least turbulence. As a result, you allow the transducer a moment to showcase.

The normal transom installation angle is 18 degrees. Because shims are included in transom mount kits, they may vary. Simply ensure that it is tilted bow high and at a 3-degree angle.

It merely indicates that the transducer’s principal edge is slightly raised.

The use of a nose-down mount might result in turbulence and poor performance. If required, shims may be added before proceeding with the installation.

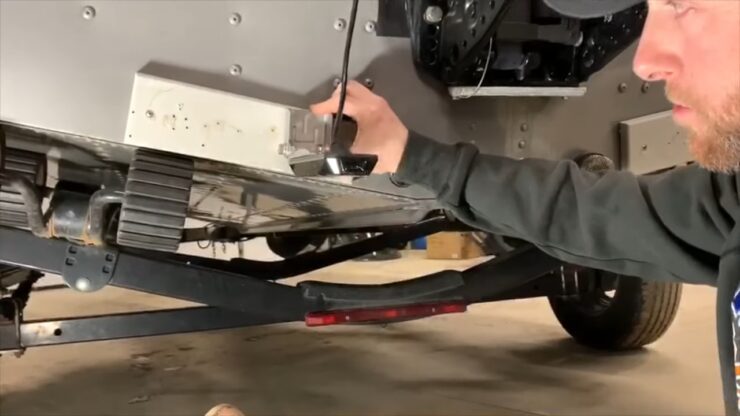

Mounting Brackets for the Transducer

Mounting Brackets for the Transducer

When attaching the bracket, be open to changes. Particularly the potential of dropping the transducer through the water. With such a gap of 1/8 inch.

The main surface of the transducer must be beneath the transom.

Mark the holes near the bottom of both the mount to keep a close eye on them. It must be done on the bracket’s adjustment apertures alone.

Now you can shift the bracket vertically and horizontally by doing the adjustment.

Setting the bracket in this manner will aid you in the event of unsatisfactory readings. When you go faster, you may reduce the transducer to optimize data collection.

You may begin drilling after designating the holes. The bracket has an arrow that points to the lower half of the transom. Every mounting hole must be sealed with marine sealant. Tightening the screws will be the next step.

Connecting the Bracket to the Transducer

Place the transducer’s pivot posts just on top of the mount. Push the posts down to secure them in place. To make it fit into the brackets, rotate it downwards. After that, attach the cord to the fish finder.

To protect the throttle cables from water, you’ll need to apply a sealant as well as a cable cover. To secure their length, a cable clip and masking tape may be required.

That is all! Hope this answers all your queries on the process.


Transducers FAQs

Is It Possible To Attach A Transducer To The Interior Of The Hull?

Yes, obviously. The most essential thing to remember is that transducers may only be bonded into solid fiberglass.

The aluminum hulls are up to 1/8th inch thick. Transmitting through the hull, however, limits the transducer’s effectiveness since boat shells absorb acoustic energy.

Is It Possible To Use In-Hull Transducers?

There is no drag, hull penetration, or chance for fouling. An in-hull transducer is a fantastic option for a trailered boat.

A boat with a stepped hull, and other sorts of high-performance hull designs.

Is It Necessary For A Transducer To Be Submerged In Water?

For accurate transducer detection, the transducer should be immersed in water. Unless you select another option.

The machine will begin “Kickstart” or regular operation if one transducer is detected.

Where do you mount a side imaging transducer on an aluminum boat?

A side imaging transducer can be mounted on an aluminum boat in several ways, depending on the type of transducer, the size and design of the boat, and the desired depth and angle of coverage.

The most common locations to mount a side imaging transducer on an aluminum boat include:

  • On the transom, either on the inside or outside of the hull, using a transom mount.
  • On the trolling motor shaft, using a trolling motor mount.
  • On the jack plate, using a bracket.

It is important to consider the location of other underwater components, such as the propeller and the trim tabs, when selecting a location for the transducer to avoid interference with these components.

Additionally, the transducer should be mounted in a location that provides a clear view of the water below the boat and is free of obstacles, such as rocks or underwater vegetation, that could obstruct the signal.

Finally, it is important to follow the manufacturer’s recommendations for installing and mounting the transducer to ensure optimal performance.


So, we hope that now you’re well aware of how to mount a transducer on an aluminum boat. Then what are you waiting for?

Just start the procedure and keep fishing.
