How to Run a Cable Boat Steering With Pulleys – Navigating with Ease

how to run a cable boat steering with pulleys

Cable boat steering with pulleys is a reliable and efficient way to steer a boat. Whether you’re navigating rough waters or simply cruising along a calm lake, having a well-functioning steering system is essential for a safe and enjoyable boating experience

The connection between the steering wheel and the engine or motors. This is the boat steering system, allowing for the safe and reliable operation of the vessel.

One of the most crucial components on a vessel, yacht steering systems are frequently disregarded.

It is a vital mechanism for the fundamentally safe functioning of the boat. It is also continuously employed.

So, how to run a cable boat steering with pulleys?

First, turn the wheel on a boat with push-pull steering.

The engine/rudder is moved mostly by the cables. Use properly sized pulley & cable.

A twin cable steering system significantly minimizes this. In certain more powerful motors, cable steering systems may acquire a hazard.

Blocks are the name for the pulleys of a boat.

These are used anytime a change in pull direction on a rope is required. As well as to provide a mechanical advantage.

Due to the power required to alter the form of the sails, pulleys are utilized in sailing.

We will discuss these in detail. Let’s get going!

Controlling Cable Boat Steering With Pulleys

Controlling Cable Boat Steering With Pulleys

The wires are used within steering systems to operate the steering wheel. It also give power to the motor is a crucial component.

Yacht steering cables are specialty cords made for use in hydraulic systems used in boats.

While these systems typically provide smooth and reliable operation, it’s essential to be aware of potential issues that can arise, ensuring your time on the water remains enjoyable and worry-free.

These provide the steering wheel system with power and guarantee the steering wheel’s smooth operation.

Measuring the proper length for the steering cable is a crucial step.

The excessive size of the cable and pulley may interfere with the steering system. It has to be installed properly.

The needed cable length for each boat varies based on the size of the boat. As well as the cable course.

Find out how much bending the cable has as it is being routed.

Choose whether the cable will be mounted on the splash wall or the transom. The engine tilt tube for installation.

The length of the steering wire may be calculated in a number of different ways.

After the style of installation has been decided. Depending on the steering mechanism, boat steering cables come in a variety of sorts.

And there are several methods to attach them.

As long as the right care is taken, installing a steering wire is a rather straightforward process.

These are the steps for installing the cable. Tie a cord to the helm and gradually draw it through the helm.

After that, replace the pins that were previously removed. By bolting this to the helm as well as the engine.

Connect the engine to the telescopic ram. Lubricate the telescoping ram’s inner and outer surfaces.

Conduct a last inspection to check for any stiffness or tightness.

For replacement steering cable assemblies, Teleflex maritime cables are specially made. There are several benefits and applications for these steering cables.

Teleflex cables may be used for boat steering.

And are employed in almost all nautical equipment and steering systems.

Teleflex cables are utilized as gear shift controlling cables in a variety of boats.

And also for watercraft because they are simple to install as well as maintain.

These are very affordable and budget-friendly.

Teleflex cables are often utilized in control systems like hydro steering and mores motor controls.

Cable Boat Steering Lubricants

Cable Boat Steering Lubricants

A sailboat steering cable has to be maintained in numerous ways. It is including with the right lubricant. This keeps the steering cable from clogging or freezing. It is also ensuring the wheel turns smoothly and effectively.

Grease or oil may be applied to the steering system to lubricate it. Additionally, specially formulated lubes may be utilized to effectively lubricate. There are different steering system components to decrease friction.

This guarantees the boat will operate well while preventing damage and corrosion. Depending on your demands, lubricants may be either oil- or water-based.

Care For a Boat’s Steering Cable Running with Pulleys

The steering mechanism of a boat may be maintained in good working condition. The owner to provide constant, accurate control. The primary cause of hard steering and, in some severe situations, cable seizing is the neglect of maintenance.

At least 2 times a year, we advise doing the following routine maintenance. Make that the steering wheel, cables, helms, and connecting hardware are all appropriately installed and functional. Look for wear, binding, excessive free play, and stiffness.

The wires and the parts that make up the cables cannot be fixed. If any of the parts are broken, replace them. Hoses with cracks in the outer jacket should always be replaced.

The guarantee will be invalidated if these elements are disassembled, and steering failure may result. The steering cable telescoping output ram and the engine tilt tube and support tube should be cleaned. These also should be lubricated.

The steering cable telescoping ram must be taken out of the tilt tube. Thoroughly clean the tilt tube’s inside. Use a wire brush to clean out the rust in the tilt tube.

Remove all of the loose stuff by wiping. Apply a marine grease that is resistant to water to the tilt tube. With a brass wire brush, scrub the steering cable telescoping ram until it’s spotless.

Apply water-resistant marine lubricant to the telescopic ram’s sliding components.

Make that all (proper) fasteners are secure during reassembly. And that there is no locking or excessive play in the moving components.

Please be aware of the locations that employ locking fasteners. Use only locking fasteners. Vibration may cause non-locking fasteners to become loose and lead to steering failure.

The cables used for steering cannot be fixed. Replace the steering cable if it has deteriorated, is immobile, or performs improperly. If your helm’s cable is no longer accessible, swap it out with a suitable steering kit.

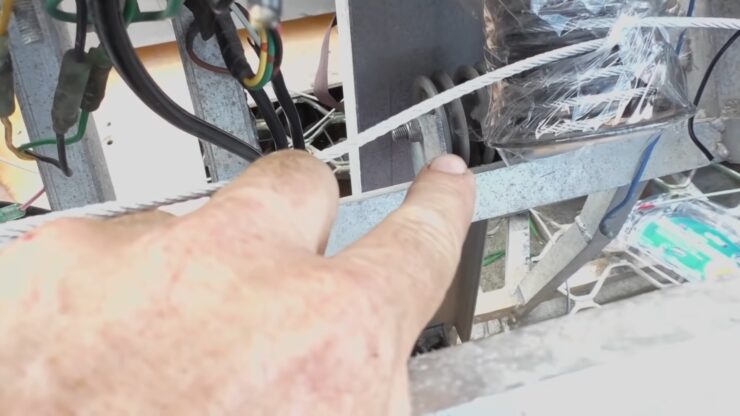

Securing the Pulleys to the Boat

Securing the Pulleys to the Boat

Securing the pulleys to the boat is an important step in setting up a cable boat steering system with pulleys.

This ensures that the pulleys remain firmly in place, and can handle the stresses and strains of steering the boat.

To secure the pulleys, start by choosing a location on the boat where the pulleys will be easily accessible and can be mounted securely.

It’s important to choose a location that is easily reachable from the helm, and that provides adequate clearance for the cable to pass through.

Once you’ve identified the location for the pulleys, use screws or bolts to attach them securely to the boat.

Make sure to use a sturdy mounting bracket or plate that is designed to handle the weight and force of the pulleys.

Testing the Steering System for Functionality

Testing the steering system for functionality is an important step in ensuring that your cable boat steering system with pulleys is working properly.

It’s important to perform this test before taking your boat out on the water to avoid any potential issues or dangers.

To test the steering system, start by turning the steering wheel all the way to the left and right to check for any stiffness or resistance.

The wheel should move smoothly and easily, with no clicking or binding.

If you encounter any issues, check the cable connections and pulleys to make sure everything is properly aligned and lubricated.

Next, turn on the engine and put it in gear to test the steering under power. The boat should steer smoothly and respond quickly to changes in direction.

If the boat is difficult to steer or does not respond well, it may be necessary to adjust the cable tension or make other adjustments to the system.

It’s also important to test the steering system at different speeds to ensure that it remains responsive and easy to control.

Make sure to test the system at both high and low speeds to get a full sense of its functionality.

During the testing process, be sure to pay attention to any unusual sounds or vibrations.

These can indicate potential issues with the steering system, and should be addressed before taking the boat out on the water.


How to Run a Cable Boat Steering With Pulleys - FAQs

1. What Various Boat Steering Systems Are There?

Boat steering systems come in a variety of types, each with their own unique advantages and disadvantages.

Cable and pulley systems are common in smaller boats and are reliable and efficient.

Hydraulic systems use pressurized fluid for precision control, but can be complex and expensive.

Rack and pinion systems are simple and reliable, but may lack precision.

Rotary systems use a steering cable to rotate a drum for affordable and reliable control.

Electronic steer-by-wire systems use electronic sensors for precise and responsive control, but may be more expensive and used in larger boats.

Ultimately, the best boat steering system for you will depend on factors like your boat type and size, budget, and personal preferences.

2. What Results in Jerky Steering?

Jerky steering in a boat can be caused by various factors, including loose or worn steering components, issues with the hydraulic system, wind and wave conditions, operator error, and improper trim or weight distribution.

Regular maintenance and inspection of the steering system, practicing proper boating techniques, adjusting the trim, distributing weight evenly, and being aware of wind and wave conditions can help prevent jerky steering and ensure a safe and enjoyable boating experience.

3. How is boat torque steer fixed?

To fix boat torque steer, adjustments to the boat’s steering and handling may be necessary.

These adjustments include checking the steering system and adjusting the propeller, trim, and torque tab.

Slowing down and using proper boating techniques can also help to reduce the effects of torque steer.

By taking these steps, the handling and performance of the boat can be improved, ensuring a safe and enjoyable boating experience.

Watch this video for additional tips that can be helpful:

4. How many feet of paracord do I need to wrap my steering wheel?

The amount of paracord needed to wrap a steering wheel will vary depending on the size of the steering wheel and the desired thickness of the wrap.

As a general guideline, a standard 14-inch steering wheel will require approximately 50-100 feet of paracord for a basic wrap.

If you want a thicker wrap or plan to use a more intricate knotting pattern, you may need more paracord.

It’s always a good idea to measure your steering wheel and plan out your design before purchasing your paracord to ensure that you have enough for your project.

Final Words

By now we hope that you know how to run a cable boat steering with pulleys. So, we can assure you that you know every basic thing you need to know.

Apply these steps and maintain this in a proper way.

We will talk shortly. Happy boating. Have a great day!
